Chongqing Great Well Magnet Co.,ltd.
| Tempat asal: | CINA |
|---|---|
| Sertifikasi: | ISO9001:2008, ROHS, REACH |
| Nomor model: | N35-G96 |
| Kuantitas min Order: | 100 |
| Harga: | USD1.00~1.50/pc |
| Kemasan rincian: | Pallet dengan karton |
| Waktu pengiriman: | 2 ~ 4 minggu |
| Syarat-syarat pembayaran: | L/C, T/T |

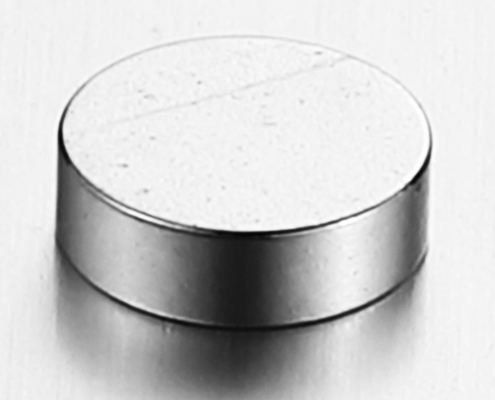

| Membentuk: | Segmen busur, Bentuk Pot / Cangkir, silinder, cakram, Disesuaikan, | Aplikasi: | Magnet Industri, Motor, Pemisah Magnetik, Generator |
|---|---|---|---|
| Gabungan: | Magnet Neodymium, Magnet NdFeB, Magnet Bumi Langka | Jenis: | Magnet pot Neodymium permanen |
| Lapisan: | Nikel, Zn, Ni-Cu-Ni, Ni, Epoxy | bahan: | Neodymium-Besi-Boron yang Disinter, Boron Besi Neodymium, Magnet Neodymium, Magnet Permanen |
| Menyoroti: | Magnet Busur Neodymium N35,Magnet Busur Neodymium Sinter,magnet segmen busur NdFeB |
||

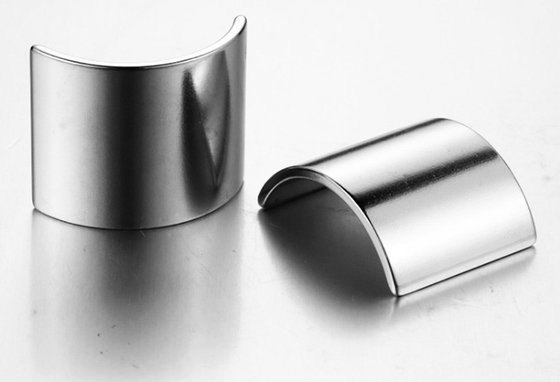

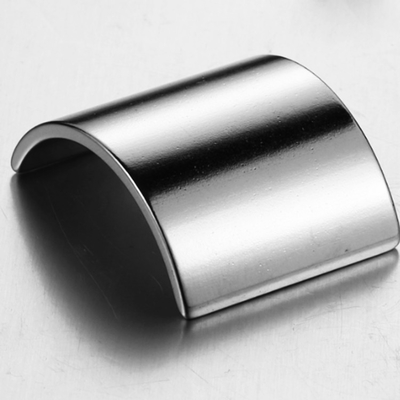

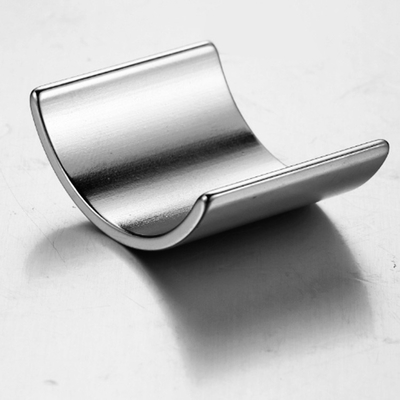

Magnet Neodymium Sinter NdFeb Arc-segmen Magnet untuk Motor N35
DESKRIPSI PRODUK
Magnet NdFeB yang disinter adalah magnet permanen komersial paling kuat yang tersedia saat ini, dengan produk energi maksimum mulai dari 26 MGOe hingga 55 MGOe.Nd-Fe-B adalah magnet permanen generasi ketiga yang dikembangkan pada tahun 1980-an.Ini memiliki kombinasi remanensi dan koersivitas yang sangat tinggi, dan hadir dengan berbagai tingkatan, ukuran, dan bentuk.Dengan karakteristik magnet yang sangat baik, bahan baku yang melimpah dan harga yang relatif rendah, Nd-Fe-B menawarkan lebih banyak fleksibilitas dalam merancang baru atau mengganti bahan magnet tradisional seperti keramik, Alnico dan Sm-Co untuk mencapai efisiensi tinggi, biaya rendah dan banyak lagi. perangkat kompak.
Sifat Magnetik Magnet NdFeB Sinter
| Barang | Nilai | remanen; | pemaksaan; | Kekuatan Pemaksaan; | Produk BH Maks; | Bekerja | ||||||||
| br | HcB | HcJ | (BH) maks | suhu | ||||||||||
| KG | T | KOe | KA/m | KOe | KA/m | MGOe | KJ/m | °C | ||||||
| Maks. | min. | Maks. | min. | Maks | min. | Maks. | min. | |||||||
| n | N40 | 13.2 | 12.6 | 1.32 | 1.26 | 10.5 | 836 | >=12 | >=954 | 42 | 38 | 334 | 289 | 80 |
| N42 | 13.5 | 12.9 | 1.35 | 1.3 | 10.5 | 836 | >=12 | >=954 | 44 | 40 | 350 | 318 | 80 | |
| N45 | 13.8 | 13.2 | 1.38 | 1.32 | 10.5 | 836 | >=12 | >=954 | 46 | 42 | 366 | 334 | 80 | |
| N48 | 14.2 | 13.7 | 1.43 | 1.37 | 10.5 | 836 | >=11 | >=876 | 49 | 45 | 390 | 358 | 80 | |
| N50 | 14.5 | 14.0 | 1.45 | 1.4 | 10.5 | 836 | >=11 | >=876 | 51 | 47 | 406 | 374 | <=80 | |
| N52 | 14.8 | 14.4 | 1.48 | 1.44 | 10.5 | >=836 | >=11 | >=876 | 53 | 49 | 422 | 390 | <=80 | |
| N55 | 1.52 | 14.6 | 1.52 | 1.46 | 9.0 | >=716 | 11.0 | >=876 | 56 | 52 | 446 | 414 | <=80 | |
| M | N38M | 12.8 | 12.3 | 1.3 | 1.23 | 11.6 | >=915 | >=14 | >=1114 | 40 | 36 | 318 | 287 | <=100 |
| N40M | 13.2 | 12.6 | 1.32 | 1.26 | 11.8 | >=939 | >=14 | >=1114 | 42 | 38 | 334 | 289 | <=100 | |
| N42M | 13.5 | 12.9 | 1.35 | 1.3 | 12.0 | >=955 | >=14 | >=1114 | 44 | 40 | 350 | 318 | <=100 | |
| N45M | 13.8 | 13.2 | 1.38 | 1.32 | 12.5 | >=994 | >=14 | >=1114 | 46 | 42 | 366 | 334 | <=100 | |
| N48M | 14.2 | 13.7 | 1.42 | 1.37 | 12.8 | >=1018 | >=14 | >=1114 | 49 | 45 | 390 | 358 | <=100 | |
| N50M | 14.5 | 14 | 1.45 | 1.4 | 13.1 | >=1042 | >=11 | >=1114 | 51 | 47 | 406 | 374 | <=100 | |
| H | N35H | 12.5 | 11.8 | 1.25 | 1.18 | 11.0 | >=875 | >=17 | >=1353 | 37 | 33 | 295 | 263 | <=120 |
| N38H | 12.8 | 12.3 | 1.3 | 1.23 | 11.6 | >=915 | >=17 | >=1353 | 40 | 36 | 318 | 287 | <=120 | |
| N41H | 13.2 | 12.6 | 1.32 | 1.26 | 11.8 | >=939 | >=17 | >=1274 | 42 | 38 | 334 | 302 | <=120 | |
| N44H | 13.7 | 13 | 1.37 | 1.3 | 12.1 | >=963 | >=16 | >=1274 | 45 | 41 | 358 | 326 | <=120 | |
| N46H | 13.8 | 13.2 | 1.38 | 1.32 | 12.2 | >=971 | >=16 | >=1274 | 47 | 43 | 374 | 342 | <=120 | |
| N48H | 14.2 | 13.7 | 1.42 | 1.37 | 12.7 | >=1011 | >=16 | >=1274 | 49 | 45 | 390 | 358 | <=120 | |
| SH | N35SH | 12.5 | 11.8 | 1.25 | 1.18 | 11.0 | >=876 | >=20 | >=1592 | 37 | 33 | 295 | 263 | <=150 |
| N39SH | 13 | 12.3 | 1.3 | 1.23 | 11.6 | >=923 | >=20 | >=1592 | 40 | 36 | 318 | 287 | <=150 | |
| N42SH | 13.2 | 12.9 | 1.32 | 1.26 | >=11.8 | >=939 | >=20 | >=1592 | 42 | 38 | 334 | 302 | <=150 | |
| N44SH | 13.7 | 13 | 1.37 | 1.3 | >=12.1 | >=963 | >=20 | >=1592 | 45 | 41 | 358 | 326 | <=150 | |
| N46SH | 13.8 | 13.4 | 1.38 | 1.34 | >=12.5 | >=965 | >=20 | >=1592 | 47 | 43 | 374 | 342 | <=150 | |
| UH | N33UH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=25 | >=1990 | 35 | 31 | 279 | 2247 | <=180 |
| N35UH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=25 | >=1990 | 37 | 33 | 295 | 263 | <=180 | |
| N38UH | 13 | 12.3 | 1.3 | 1.23 | >=11.6 | >=915 | >=25 | >=1990 | 40 | 36 | 318 | 287 | <=180 | |
| N40UH | 13.2 | 12.6 | 1.32 | 1.26 | >=10.5 | >=836 | >=25 | >=1990 | 42 | 38 | 334 | 289 | <=180 | |
| EH | N30EH | 11.7 | 10.9 | 1.17 | 1.09 | >=10.2 | >=812 | >=30 | >=2388 | 32 | 28 | 255 | 223 | <=200 |
| N33EH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=30 | >=2388 | 35 | 31 | 279 | 2247 | <=200 | |
| N35EH | 12.5 | 11.8 | 1.25 | 1.18 | >=11.0 | >=875 | >=30 | >=2388 | 37 | 33 | 295 | 263 | <=200 | |
| N38EH | 13 | 12.2 | 1.3 | 1.22 | >=11.5 | >=915 | >=30 | >=2387 | 40 | 36 | 318 | 287 | <=200 | |
| AH | N28AH | 11 | 10.4 | 1.1 | 1.04 | >=9,70 | >=772 | >=35 | >=2786 | 29 | 26 | 231 | 207 | <=220 |
| N30AH | 11.7 | 10.8 | 1.17 | 1.08 | >=10.2 | >=812 | >=35 | >=2786 | 32 | 28 | 255 | 223 | <=220 | |
| N33AH | 12.2 | 11.4 | 1.22 | 1.14 | >=10.7 | >=851 | >=35 | >=2786 | 35 | 31 | 279 | 247 | <=220 | |
| N35AH | 12.5 | 11.7 | 1.25 | 1.17 | >=11.0 | >=876 | >=35 | >=2386 | 37 | 33 | 295 | 263 | <=220 | |
Bagan Alir Produksi
Aplikasi
