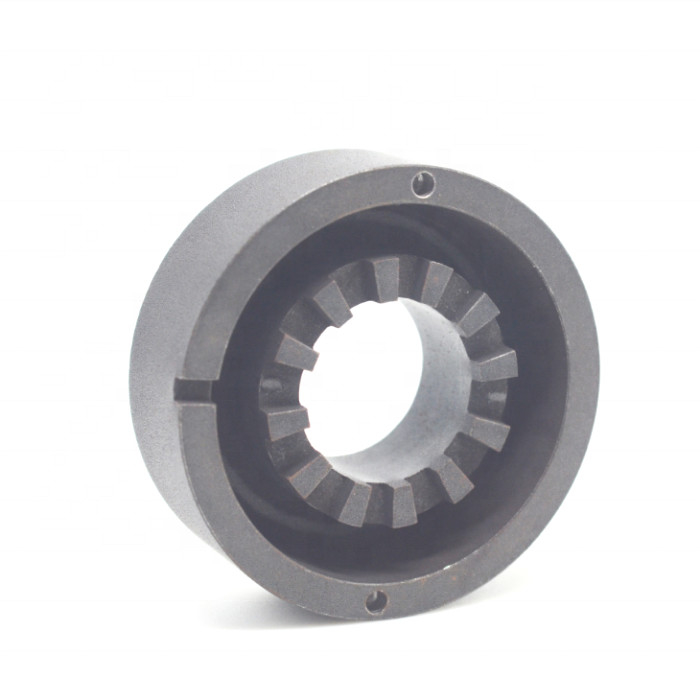

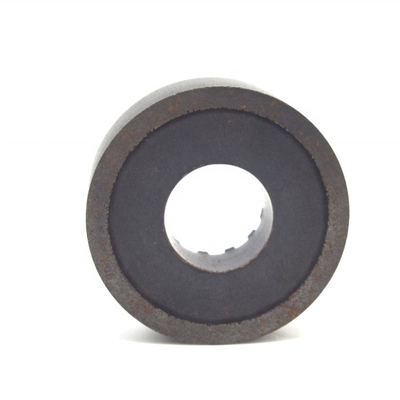

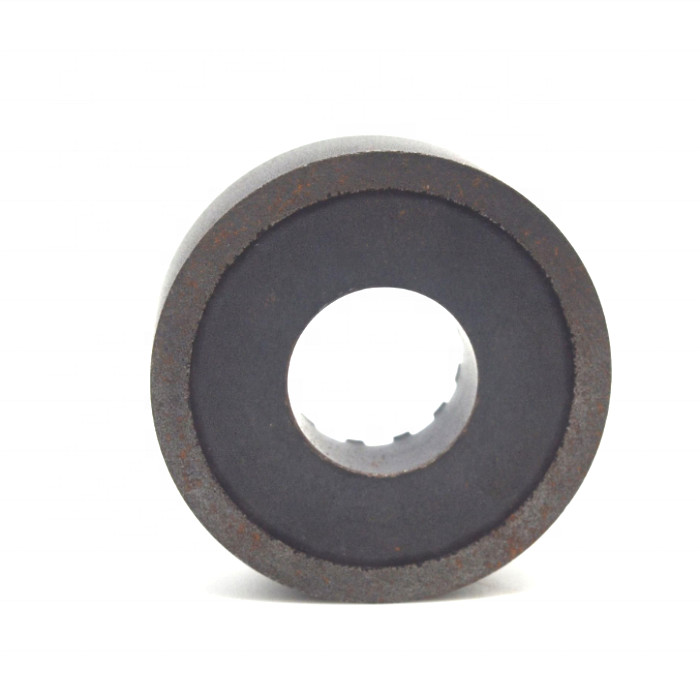

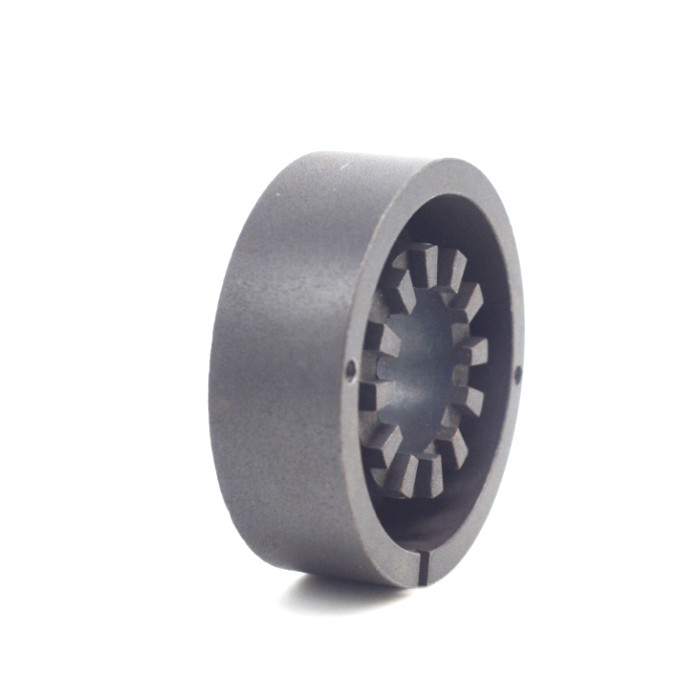

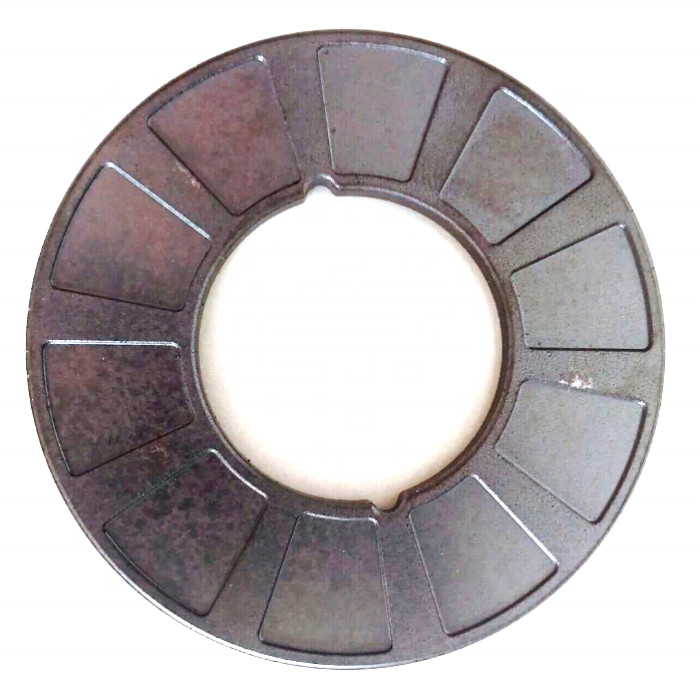

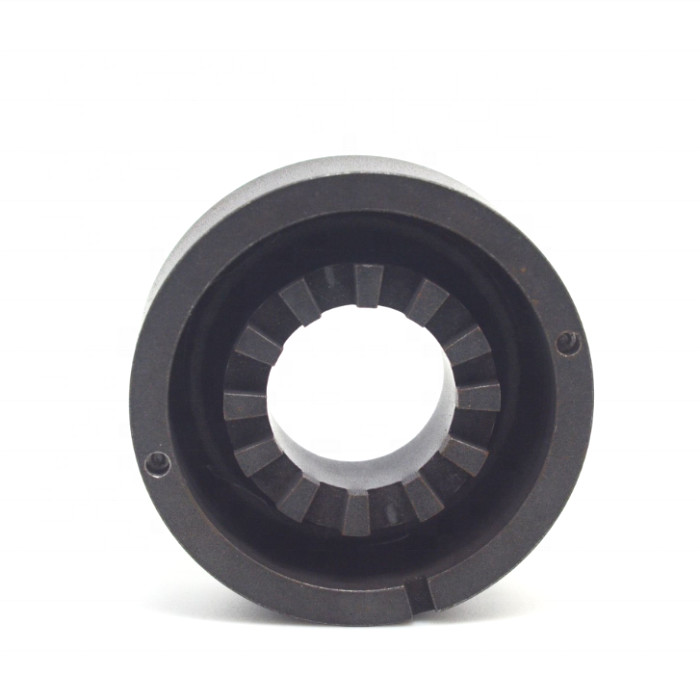

Yxg28 Yxg30 Smco Mini Ring Samarium Cobalt Magnet Stator
Key Attributes
Product Summary
Pengalaman 15 Tahun Kustom Yxg28 Yxg30 Smco Mini Ring Magnet Stator Penerapan magnet SmCo: Magnet SmCo, karena sifatnya, paling sering digunakan dalam aplikasi yang membutuhkan suhu operasi tinggi, seperti generator, kopling pompa, sensor, motor, aplikasi kelautan, serta otomotif, balap, dirgantara...
Product Details
Yxg28 Samarium Cobalt Magnet
,Yxg30 Samarium Cobalt Magnet
,Smco samarium cobalt cincin magnet
Pengalaman 15 Tahun Kustom Yxg28 Yxg30 Smco Mini Ring Magnet Stator
Penerapan magnet SmCo:
Magnet SmCo, karena sifatnya, paling sering digunakan dalam aplikasi yang membutuhkan suhu operasi tinggi, seperti generator, kopling pompa, sensor, motor, aplikasi kelautan, serta otomotif, balap, dirgantara, militer, serta industri makanan dan manufaktur.
|
Nama Produk
|
Kustom 15 Tahun Pengalaman Yxg28 Yxg30 Smco Mini Ring Magnet Stator
|
|
Bahan Produk
|
Magnet Samarium Cobalt
|
|
Kelas Magnet
|
Boron besi neodymium, Magnet Neo, Magnet Nd, Magnet tanah jarang
|
|
Ukuran produk
|
Terima Disesuaikan
|
|
suhu kerja
|
350 °C
|
|
Arah magnet
|
Melalui arah ketebalan, permukaan datar adalah medan magnet.
|
|
Gaya tarik vertikal
|
dapat menarik papan logam lebih dari 19 lembar kertas A4
|
|
Metode pengujian
|
pengujian manual
|
|
Aplikasi
|
Motor servo, motor Brushless, Motor Linier, Motor Otomotif, motor HEV& EV, Motor Penggerak Robot, Motor Kompresor Inverter, Rel
|
Spesifikasi
| Nilai | Maks.Produk Energi | Remanensi | Kekuatan Pemaksaan | Pdt. Temp.koefisien | Bekerja Temp. | Kepadatan | ||||||
| (BH)maksimal | BR | HC | Hci | BD | HD | Tw | D | |||||
| MGOe | kJ/m3 | kG | mT | koe | kA/m | koe | kA/m | %/°C | %/°C | °C | g/cm3 | |
| SmCo516A | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >16.0 | >1270 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo516B | 16 | 130 | 8.2 | 820 | 7.5 | 600 | >20.0 | >1590 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo518A | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >16.0 | >1272 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo518B | 18 | 146.3 | 8.7 | 870 | 8.2 | 656 | >20.0 | >1590 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo520A | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >16.0 | >1272 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo520B | 20 | 162.5 | 9 | 900 | 8.6 | 690 | >20.0 | >1590 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo522A | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >16.0 | >1272 | -0,05 | 0,25 | 250 | 8.4 |
| SmCo522B | 22 | 178.8 | 9.5 | 950 | 9.1 | 728 | >20.0 | >1590 | -0,05 | 0,25 | 250 | 8.4 |
| Sm2Bersama1724 | 24 | 195 | 10 | 1000 | 9.5 | 760 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1726A | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1726B | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1726H | 26 | 211.3 | 10.6 | 1060 | 9.8 | 784 | >26.0 | >2067 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1728A | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1728B | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1728H | 28 | 227.5 | 10.9 | 1090 | 10 | 800 | >26.0 | >2067 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1730A | 30 | 243,8 | 11 | 1100 | 10.2 | 816 | >16.0 | >1272 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1730B | 30 | 243,8 | 11.2 | 1120 | 10.2 | 816 | >20.0 | >1590 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1732 | 31 | 251.8 | 11.5 | 1150 | 10 | 800 | >15.0 | >1192 | -0.03 | 0,23 | 300 | 8.3 |
| Sm2Bersama1725H | 25 | 203.2 | 10.5 | 1050 | 9.7 | 776 | >35.0 | >2782 | -0.03 | 0,23 | 375 | 8.3 |
